Full HD Cloud Dashcams
Reliable and Connected
The BlackVue DR770X Plus Series set the standard for Cloud connectivity and reliability.
Full HD Sony STARVIS™ image sensors for clear videos under any light.
Built-in GPS logger, Wi-Fi, impact and motion detection.
Stealthy design that never gets in the way of your driving.
No need for a screen: with the free BlackVue app, connect seamlessly to your dashcam whenever you need.
DR770X Series - Full HD Cloud Dashcams
Full HD Cloud Dashcams
DASHCAMS WITHOUT COMPROMISE

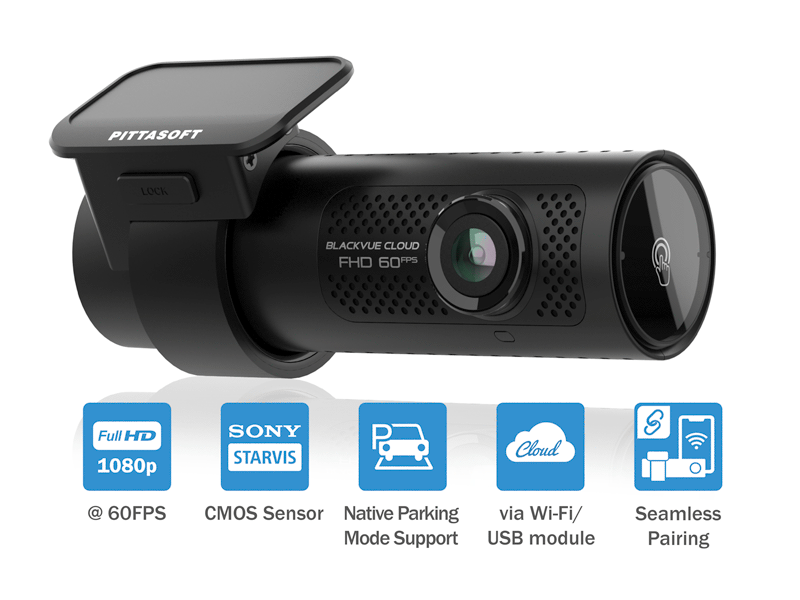

Front cam: 2.1 megapixels STARVIS™ sensor / Full HD (1920×1080 @60FPS) / View angle: 139 degrees.

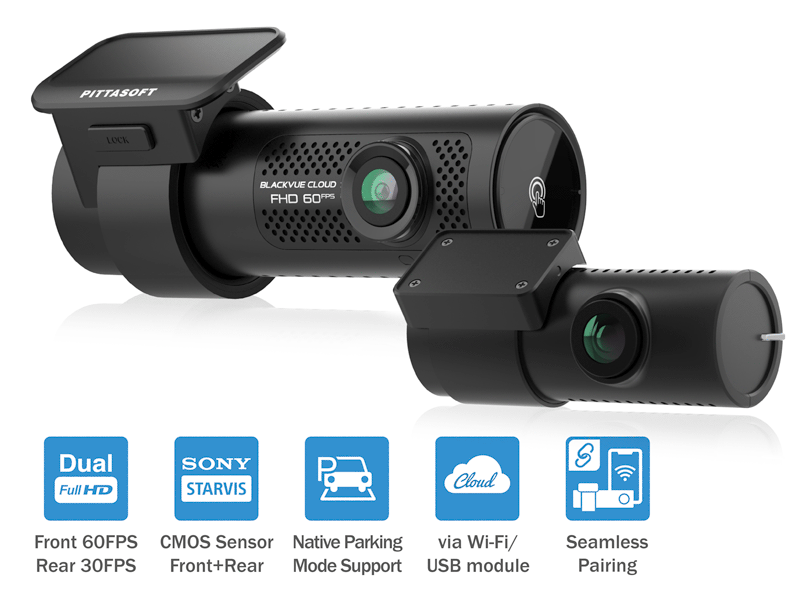

Rear cam (DR770X-2CH): 2.1 megapixels STARVIS™ sensor / Full HD (1920×1080 @30FPS) / View angle: 139 degrees.

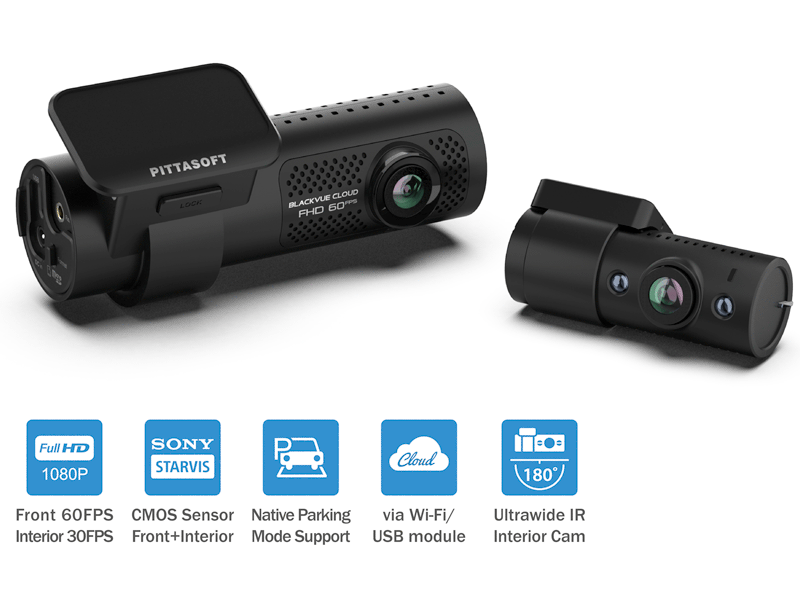

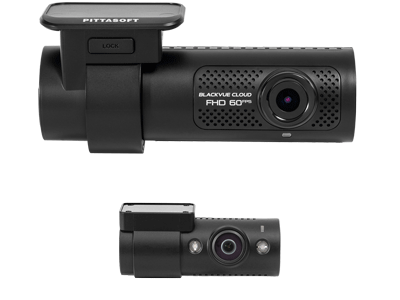

Interior cam (DR770X-2CH IR): 2.1 megapixels with infrared LEDs / Full HD (1920×1080 @30FPS) / View angle: 180 degrees.

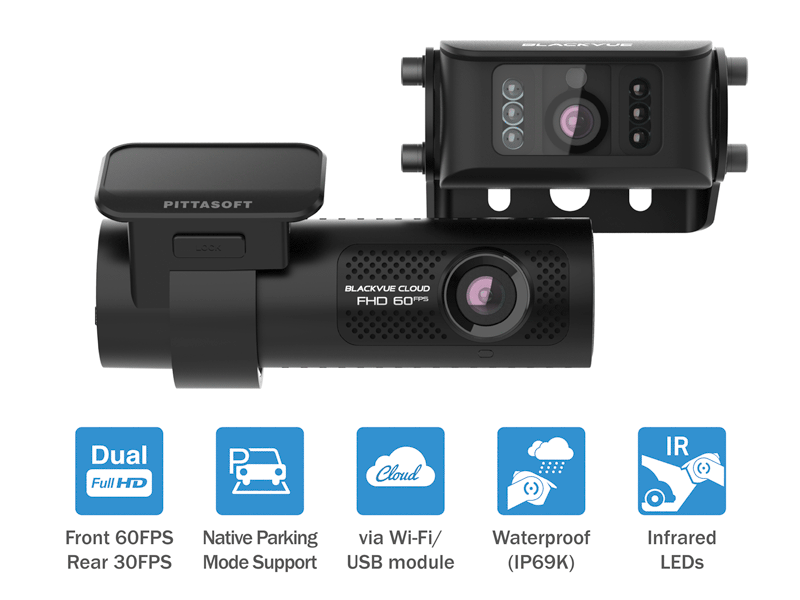

Exterior waterproof cam (DR770X-2CH TRUCK): 2.1 megapixels with 6 infrared LEDs / Full HD (1920×1080 @30FPS) / View angle: 116 degrees.

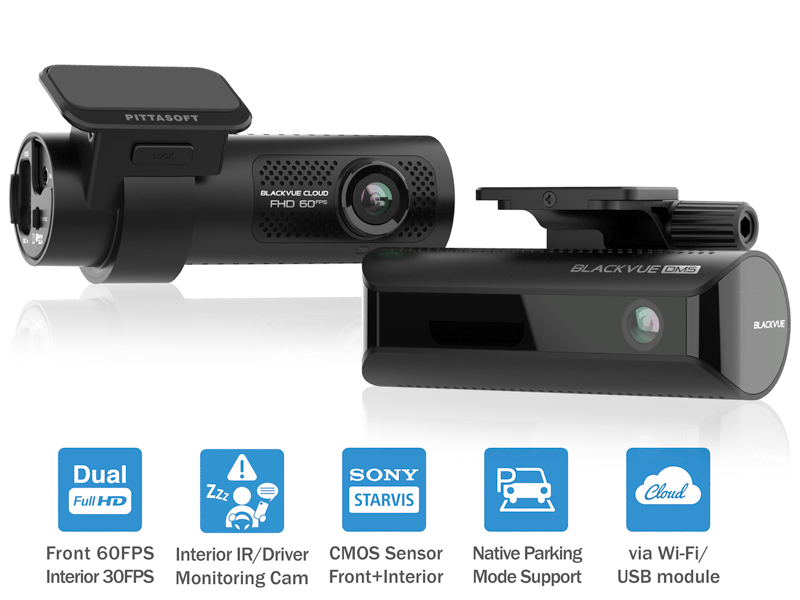

DMC200 (DR770X-2CH DMS): 2.1 megapixels STARVIS™ sensor / Full HD (1920×1080 @30FPS) / View angle: 115 degrees.
With the free BlackVue Cloud add-on service, check on your car anytime, anywhere.
Firmware Download
DR770X-2CH
DR770X-1CH
Connectivity Module User Guide

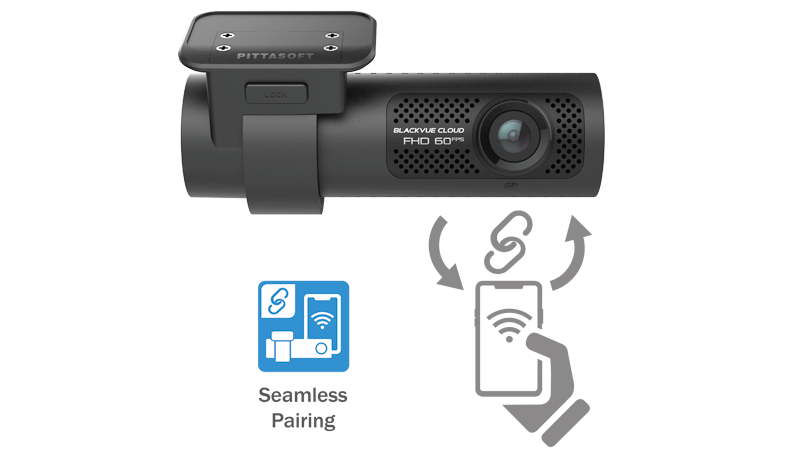

Seamless Pairing with the BlackVue App
Effortless setup.
Simply connect to your dashcam without leaving the BlackVue App. With Seamless Pairing, setting up your dashcam is a breeze. Just power the dashcam, then easily connect from the BlackVue app and follow the simple instructions.
Whether you want to browse your dashcam’s files and settings or connect your dashcam to the Cloud, Seamless Pairing makes everything easy and intuitive.

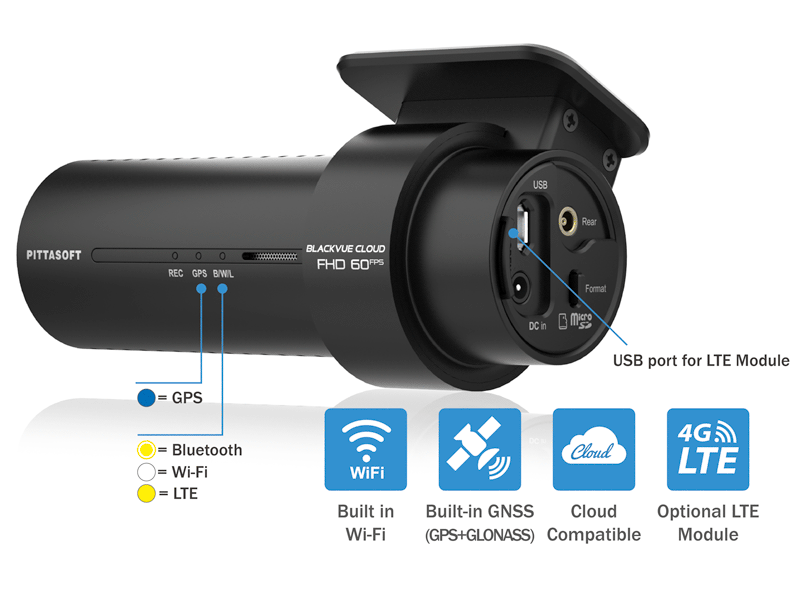

GPS, Wi-Fi and Optional LTE
GPS: visualize the location of your vehicle on the map during video playback and overlay speed on videos (can be hidden in settings).
Wi-Fi: lets you connect to your BlackVue with a smartphone or tablet. Wi-Fi also lets your BlackVue connect to BlackVue Cloud via any home or mobile Wi-Fi hotspot (router).
LTE: connect the optional LTE connectivity module* via the USB port for the best Cloud experience.
(*) SIM card not included.
Native Parking Mode
Hardwiring cable included
DR770X Series can be hardwired to your vehicle’s fuse panel for Parking Mode, without requiring optional accessories. The dashcam will switch to Parking Mode automatically when vehicle ignition is turned off. Voltage cutoff and timer can be set in the BlackVue App.
Parking Mode accessories support
DR770X Series is also compatible with all BlackVue Parking Mode Kits and Batteries.

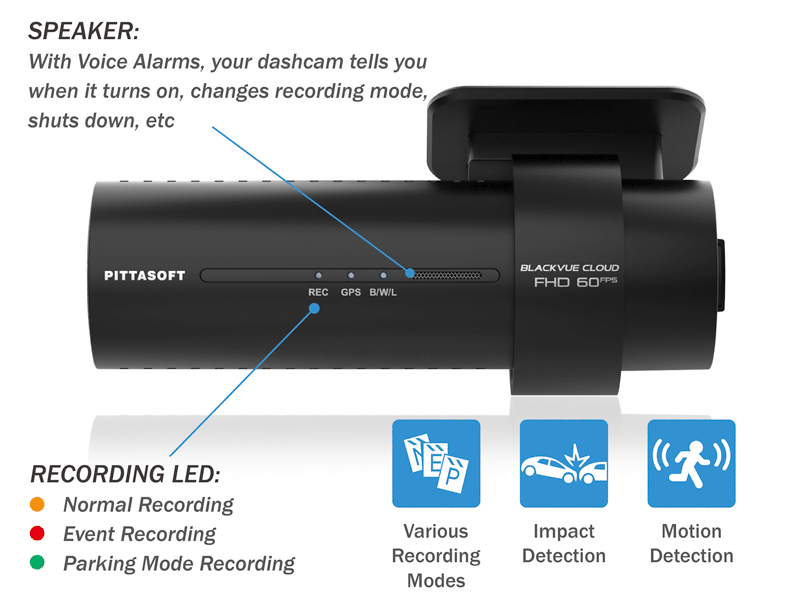

Built-in Speaker, Impact Sensor and Motion Detection
Speaker: your dashcam tells you when it turns on, shuts down or detects errors.
Accelerometer: detects impacts to trigger Event recording. Enables Parking Mode* when stationary for 5 minutes.
Automatically tags video files: While driving, the built-in accelerometer (G-sensor) detects impacts and sudden changes in speed. While parked, your BlackVue also detects visual movements around your vehicles (in Motion + Impact detection mode).
Use the filters in the BlackVue App and Viewer: BlackVue tags all videos (Normal, Event, Parking Mode, etc.), so that you can filter them and quickly find the ones you need in the BlackVue Viewer (Windows, Mac OS, Web) or the BlackVue App (Android, iOS).
Sleek Interface
Touch sensor
Tap the touch sensor to trigger Manual Event videos.
Format button
Hold to format the microSD card.
Secure microSD card access
Unplug the DC in power connector and pop the cover open to reveal the microSD card slot.
BlackVue App (iOS, Android) and Viewer (Windows/Mac/Web)
Easily access and manage your video files
Easily change your BlackVue configuration settings and browse your videos on your mobile or computer.
With the BlackVue App, connect to your BlackVue to access files and check real-time Live View for easy setup of your dashcam.
With the SD Card Viewer, connect your dashcam’s microSD card to your computer to view and backup footage in bulk, as well as export clips, remove sound, etc.
The Web Viewer lets you manage your Cloud-connected dashcams from any web browser at blackvuecloud.com.
BlackVue Cloud
Me and My Car. Connected.
Connect to your BlackVue anytime, from anywhere in the world with BlackVue Cloud.
Receive Push Notifications on your phone whenever the dashcam detects an impact on your parked vehicle, and see for yourself with Remote Live View. Even better, let BlackVue upload critical footage—such as break-in or hit and run—in real time to the Cloud with Live Event Upload.
Play and download videos from your dashcam or the Cloud from anywhere and back up important videos to the free Cloud storage.
Enjoy Two-way Voice Communication with the driver from the app through the BlackVue’s integrated speaker and mic. Check the BlackVue Cloud page for more information.
Your videos are safe
Event Files Overwrite Protection: dashcams record in a loop, overwriting older files when the memory is full. BlackVue can prevent Event files (triggered manually or by impacts) overwriting. Up to fifty (50) files can be protected this way. You can choose to allow new Event files to overwrite past Event files, thus keeping the latest fifty.
Adaptive Format-Free File Management: this BlackVue-developed file system improves recording stability and requires less microSD card formatting.
SD Card Failure Alert: your BlackVue detects as soon as the microSD card fails and warns you with a “Please check SD card” voice alert.

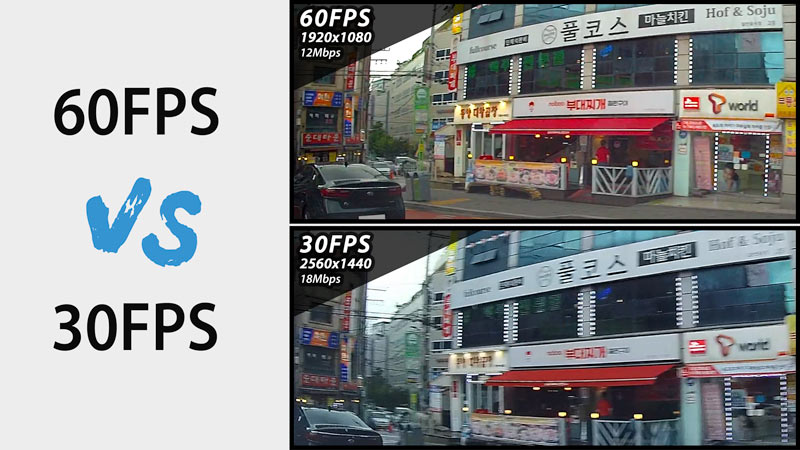

High Frame Rate for Extra Fluidity
The advantage of 60FPS video capture
The front camera records extra fluid videos at 60 frames per second, keeping all details sharp even in fast action. With 60fps, motion blur is much reduced compared to 30fps. That means your BlackVue can better capture details–like license plates–even in fast-moving objects.
Note 1: the higher the image quality setting, the higher the bitrate and the bigger the file size. A bigger size will increase the time necessary to transfer a video file over Wi-Fi.
Note 2: Remote Live View using BlackVue Cloud is not affected by the image quality and framerate settings.
LTE Connectivity Module (Optional)
Unlock BlackVue Cloud access. Share Wi-Fi in your car.
The CM100GLTE provides easy 4G LTE connectivity to enable BlackVue Cloud features. All you need is a valid Nano SIM card. The CM100GLTE is powered and connects via the USB port of your dashcam.
When connected to the CM100GLTE, BlackVue DR770X Series can serve as a mobile hotspot providing wireless Internet access to up to five devices (smartphone, tablet, etc.).
Note: when purchasing, make sure the CM100GLTE you choose is compatible with your mobile carrier’s network.

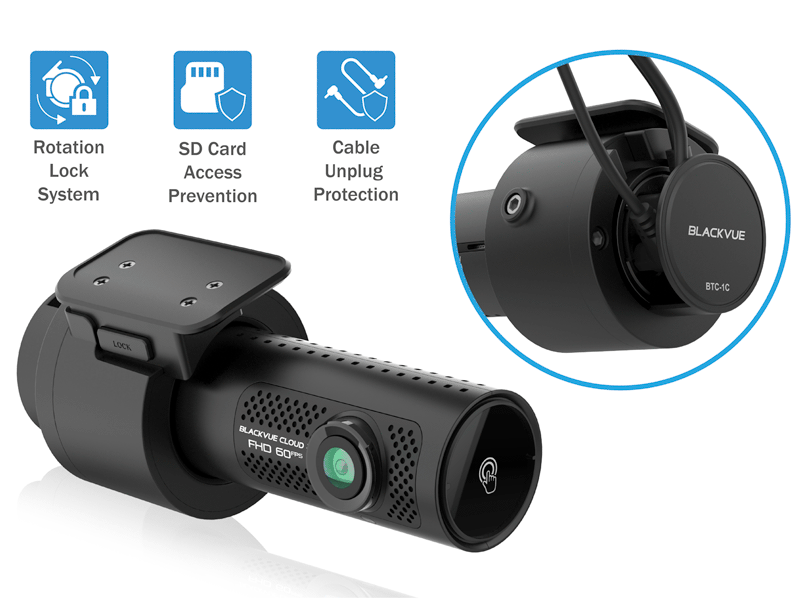

Tamper-Proof Case (Optional)
The BTC-1C is a special-purpose mount designed to prevent tampering.
It replaces your dashcam’s original mount. The side cover, fastened by two hex screws, blocks the access to the microSD card and the cable connectors.
Triple protection
- Locks the dashcam’s angle via an hex screw to prevent rotation.
- Blocks the access to the microSD card slot.
- Protects against the unplugging of the power, video, and USB cables.
Intelligent Parking Mode
Protect your car when you are away.
Parking Mode Kit
Parking Mode Batteries
BlackVue automatically switches to Parking Mode to monitor your parked vehicle.
Thanks to video buffer, the few seconds leading to triggering events are also recorded.
DR770X Series supports two Parking Mode options:
Motion & Impact Detection mode
Motion & Impact Detection Parking Mode detects both:
- Motions recorded by the image sensor (marked “P” in the file list).
- Impacts detected by the accelerometer/G-sensor (marked “E” in the file list).
Choose detection regions to reduce the risk of triggering unwanted motion recordings due to trees swaying in the wind, far-away moving objects, etc.
Time lapse mode
Continuously records at 1FPS (one frame per second). Videos are played back at 30FPS.
1-minute Time lapse Parking Mode video = 30 minutes real time coverage.
Cover a period of more than 54 hours on a single 32GB microSD card at the highest (Extreme) quality setting.
When an impact is detected, the dashcam creates a buffered Event video.
Parking Mode Event Voice Notifications:
Upon exiting Parking Mode, your BlackVue tells you if Events were recorded when you were away from your car, so you can check right away the Event videos on the BlackVue App.
Scheduled Reboot:
Schedule a daily automatic reboot (optional—at night by default ) to minimize potential errors. Reboots happen only if the dashcam is in Parking Mode and not writing data to the microSD card.
Super stealthy:
Completely turn off all LED indicators in Parking Mode. Only the recording LED indicator facing the interior of the vehicle will blink when motion or impact is detected.
